PCB Wolf-Lite DUC/DDC SDR HF Transceiver All Mode 20W UA3REO TFT 3.5 inch FT8 WiFi

€35.00
Tax included

PCBs kit DUC/DDC SDR Transceiver All Mode 20W ATU TFT 3.5 inch

Quantity
Shipping after pre-order from approx. 3 weeks

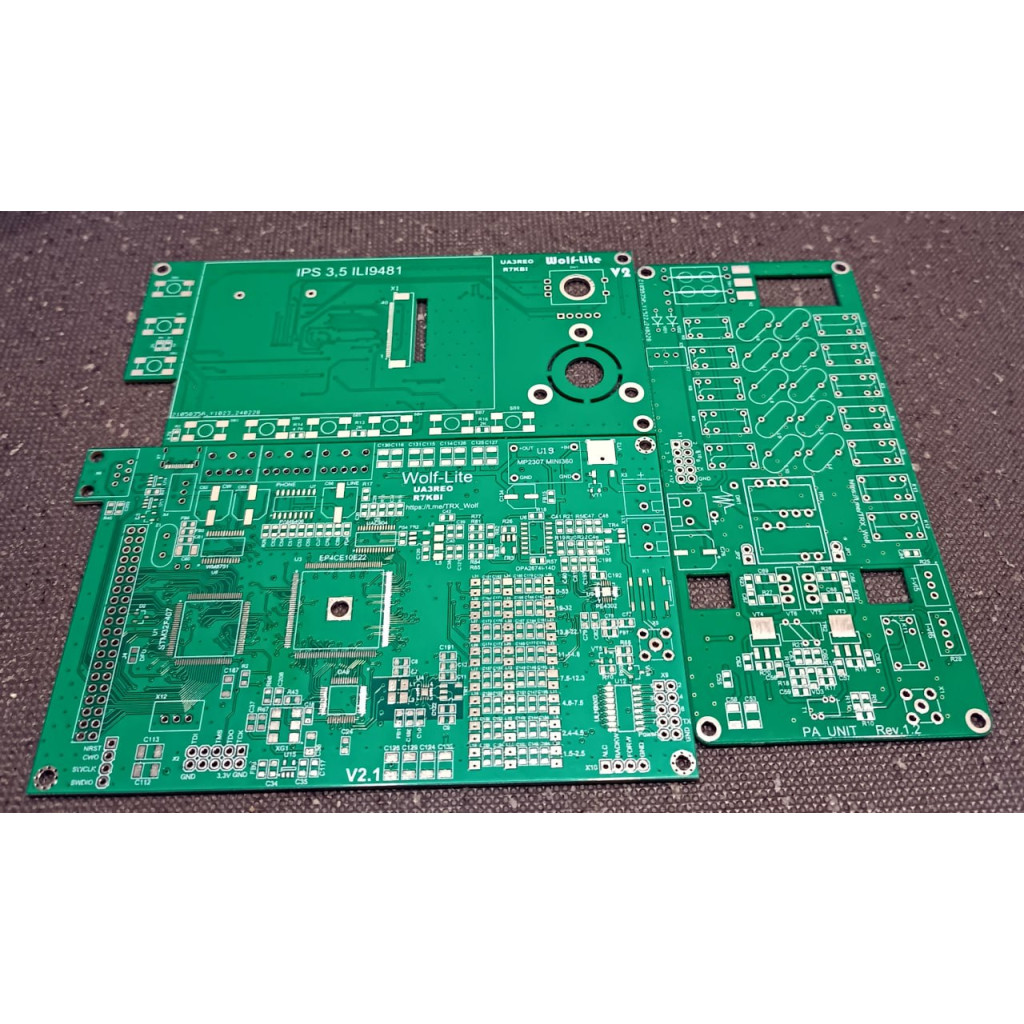

A set of circuit boards for self-assembly of the Wolf-Lite transceivers from UA3REO.

Principle of operation

The RF signal is digitized by a high-speed ADC chip and fed to an FPGA processor.
It performs DDC / DUC conversion (digital frequency shift down or up the spectrum) - by analogy with a direct conversion receiver.
The I and Q quadrature signals from the conversions are fed to the STM32 microprocessor.
It filters, (de) modulates and outputs audio to an audio codec / USB. It also handles the entire user interface.
When transmitting, the process occurs in the opposite order, only at the end of the chain there is a DAC, which converts the digital signal back to analog RF.

Specifications

  • Receiving frequencies: 0 Mhz - 54 Mhz, band filters for ham bands
  • Transmission frequencies: 0 MHz - 30 Mhz, amplifiers for ham bands
  • TX power: 20W (HF)
  • Modulation types (TX / RX): CW, LSB, USB, AM, FM, WFM, DIGI
  • LNA, Preamplifier
  • Adjustable attenuator 0-31dB
  • Band pass filters
  • ADC dynamic range (12 bit) ~74dB
  • Supply voltage: 13.8V
  • TFT Display: 3.5 inch

Transceiver Features

  • Panorama (spectrum + waterfall) up to 96 kHz wide
  • Panorama tweaks and themes
  • Adjustable bandwidth: HPF from 0Hz to 2700Hz, LPF from 100Hz to 20kHz
  • Integrated SWR/power meter (HF)
  • Switchable AGC (AGC) with adjustable attack rate
  • Range map, with the ability to automatically switch modes
  • Digital Noise Reduction (DNR), Pulse Noise Reduction (NB)
  • CAT virtual COM port (FT-450 / TS-2000 emulation, RTS - PTT, DTR - CW)
  • USB operation (audio transmission, CAT, KEY, PTT)
  • Spectrum analyzer
  • VOX
  • Equalizer TX/RX, reverber
  • SSB/FM Scanner mode
  • AGC takes into account the characteristics of human hearing (K-Weighting)
  • Tangent support Yaesu MH-36 и MH-48
  • Hardware self-testing
  • Firmware update over USB
  • And other.. (see menu)
